1956 Admiral 10" Portable

Model T-103

What a mess! This sets only good points were that it was complete and had a good picture tube.
Replacing all the Electrolytic, and paper capacitors, a couple tubes, a few resistors, the audio output transformer, and the speaker got this set working again.

I still need to strip and repaint the cabinet in it's original, 55 Chevy Turquoise and White colors.

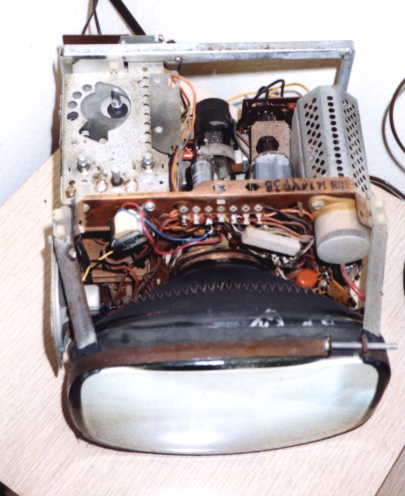

Chassis 14YP3B


Click on the thumbnail
to see the chassis


The Sams Photofact# for this set is a 350-1

The table below lists the tubes and their function

V1 RF Amplifier 3BC5 V8 Audio Output 12CU5
V2 Mixer- Oscillator 5J6 V9 Vert. Mult - Vert. Output 6CM7
V3 1st Video IF Amplifier 3CB6 V10 Horiz. Mult 6CG7
V4 2nd Video IF Amplifier 3CB6 V11 Horiz. Output 12DQ6
V5 Video Output - Sync Sep. 6BA8A V12 Damper 12AX4GTA
V6 Sound IF Amp - Sync Phase Inverter 5U8 V13 High Voltage Rectifier 1X2B
V7 Audio Detector 3DT6 V14 Picture Tube 10ABP4
